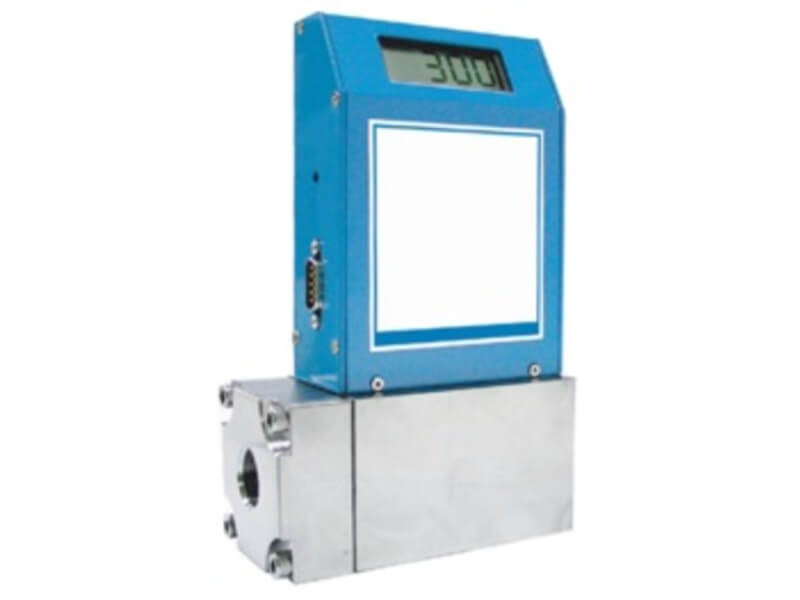

熱質式流量計

熱質式流量計
熱質式流量計
產品型號:F13-06

型錄下載

規格說明

Name

Thermal Mass Flow Meter

Fluids

Non-corrosive Gas

Display

LCD display with blue backlight.

One line display type includes 4 digits flow rate and one unit assigned.

Two line display type includes 8 digits flow rate and 10 digits totalizer.

Units Kg, GAL, NL, Nm3, cc, L and M3 are available.

Flow Range

0~250 SLM to 0~500 SLM

Process Connection

1/2”NPT female

Output Signal

0~5V / 4~20mA

Load Resistance

0~5V - 1000Ω

4~20mA - 500Ω

Material

Wetted Part - SS316

O-ring - Viton

Accuracy

±1%FS

Repeatability

±0.15%FS or better

Turndown Ratio

100:1

Input Power

24VDC / 15VDC / 115VAC / 220VAC

Electric Connection

9 Pin Sub D

Minimum Pressure

100”H2O

Maximum Pressure

500 PSIG

Temperature Range

0~50℃

Response Time

1 second

Temp. Coefficient

0.05%FS per 1℃ or better

Pressure Coefficient

0.01%FS per PSIG or better

Certification

CE

Weight

App. 2.45kg with power supply

App. 2.59kg with power supply & totalizer
